Olympus LEXT Files From Zenodo

This example downloads Olympus LEXT OLS4100 confocal microscope data from Zenodo, extracts the .lext files, converts each intensity channel to a display image, enhances it, and adds a scale bar.

Data source

Title:

Raw data on tribometry of laser structured copper surfaces

Authors:

Sebastian Suarez, Bruno Alderete, Fabian Bonner, Silas Daniel Schütz, Frank Thomas Mücklich

Zenodo:

https://zenodo.org/records/17814735

import os
import shutil
from pathlib import Path
from urllib.request import urlopen
from xml.etree import ElementTree
from zipfile import ZipFile

import matplotlib.pyplot as plt
import numpy as np
from PIL import Image
import tifffile

from micromechanics.tif import Tif


DATA_URL = "https://zenodo.org/api/records/17814735/files/Files%20CLSM.zip/content"
EXAMPLE_DIR = Path(__file__).resolve().parent if "__file__" in globals() else Path.cwd().resolve()
DATA_DIR = EXAMPLE_DIR / "_downloads" / "lext_zenodo_17814735"
ZIP_PATH = DATA_DIR / "Files CLSM.zip"
LEXT_DIR = DATA_DIR / "Files CLSM"


def download_and_unpack() -> Path:
  """Download and unpack the Zenodo archive if the data are not present."""
  DATA_DIR.mkdir(parents=True, exist_ok=True)
  if not ZIP_PATH.exists():
    print("Downloading", DATA_URL)
    temporary_path = ZIP_PATH.with_suffix(".zip.part")
    with urlopen(DATA_URL, timeout=60) as response, temporary_path.open("wb") as file_handle:
      shutil.copyfileobj(response, file_handle)
    temporary_path.replace(ZIP_PATH)
  if not any(LEXT_DIR.glob("*.lext")):
    print("Unpacking", ZIP_PATH)
    with ZipFile(ZIP_PATH) as archive:
      archive.extractall(DATA_DIR)
  return LEXT_DIR


def processLext(path: Path, channel: str = "intensity") -> Path:
  """Read the lext file, create a display image, and save it as png."""
  with tifffile.TiffFile(path) as tif:
    lext_description = tif.pages[0].description or ""
    channels = {"intensity": 0}
    for page_index, page in enumerate(tif.pages):
      description = (page.description or "").strip()
      if description == "INTENSITY":
        channels["intensity"] = page_index
      elif description == "HEIGHT":
        channels["height"] = page_index
    print("  Available channels:", ", ".join(channels))
    data = tif.pages[channels[channel]].asarray()
  root = ElementTree.fromstring(lext_description)
  tag_name = "HeightDataPerPixelX" if channel == "height" else "IntensityDataPerPixelX"
  tag = root.find(f".//{tag_name}")
  if tag is None or tag.text is None:
    raise ValueError(f"Could not find {tag_name} in {path}")
  pixel_size = float(tag.text) / 1_000_000.0  # Olympus LEXT stores lateral spacing in picometers in these files.

  values = data.astype(np.float64, copy=False)
  low, high = np.percentile(values, (0.5, 99.5))
  if high <= low:
    high = low + 1.0
  scaled = np.clip((values - low) / (high - low), 0.0, 1.0)
  image = Image.fromarray((scaled * 255).astype(np.uint8)).convert("L")

  # custom resizing
  # targetWidthPx = round(640 / pixel_size) # make image exactly 640um wide
  # if image.size[0] > targetWidthPx:
  #   image = image.crop((0, 0, targetWidthPx, image.size[1]))
  # targetHeightPx = round(480 / pixel_size) # make image exactly 480um tall
  # if image.size[1] > targetHeightPx:
  #   image = image.crop((0, 0, image.size[0], targetHeightPx))

  tif = Tif()
  tif.setData(image, pixel_size)
  tif.enhance("adaptive")
  tif.addScaleBar("BR", scale=int(tif.width / 7.0))
  output_path = path.with_suffix(".png")
  tif.image.convert("RGB").save(output_path)
  print(f"  pixelSize={pixel_size:g} um, width={tif.width:g} um, height={tif.image.size[1]*pixel_size:g} um")
  return output_path

Download the public Zenodo archive only once, unpack it, and process all LEXT files in the archive. Generated PNG files are written next to the extracted measurement files under docs/source/examples/_downloads/.

lext_dir = download_and_unpack()
output_paths = []
for file_name in sorted(os.listdir(lext_dir)):
  if not file_name.endswith(".lext"):
    continue
  print("Processing", file_name)
  output_paths.append(processLext(lext_dir / file_name, "intensity"))

Downloading https://zenodo.org/api/records/17814735/files/Files%20CLSM.zip/content
Unpacking /home/runner/work/micromechanics/micromechanics/docs/source/examples/_downloads/lext_zenodo_17814735/Files CLSM.zip
Processing 200720_cu 10 15deg 50 3x.lext
  Available channels: intensity, height
widthPixel 1024
Pixel size 0.08333333333333333 [um]
Picture width 85.33333333333333 [um]
  pixelSize=0.0833333 um, width=85.3333 um, height=85.3333 um
Processing 200720_cu 2 0deg 50 3x.lext
  Available channels: intensity, height
widthPixel 1024
Pixel size 0.08333333333333333 [um]
Picture width 85.33333333333333 [um]
  pixelSize=0.0833333 um, width=85.3333 um, height=85.3333 um
Processing 200720_cu 2 15deg 50 3x.lext
  Available channels: intensity, height
widthPixel 1024
Pixel size 0.08333333333333333 [um]
Picture width 85.33333333333333 [um]
  pixelSize=0.0833333 um, width=85.3333 um, height=85.3333 um
Processing 200720_cu 2 30deg 50 3x.lext
  Available channels: intensity, height
widthPixel 1024
Pixel size 0.08333333333333333 [um]
Picture width 85.33333333333333 [um]
  pixelSize=0.0833333 um, width=85.3333 um, height=85.3333 um
Processing 200720_cu 2 45deg 50 3x.lext
  Available channels: intensity, height
widthPixel 1024
Pixel size 0.08333333333333333 [um]
Picture width 85.33333333333333 [um]
  pixelSize=0.0833333 um, width=85.3333 um, height=85.3333 um
Processing 200720_cu 7.5 15deg 50 3x.lext
  Available channels: intensity, height
widthPixel 1024
Pixel size 0.08333333333333333 [um]
Picture width 85.33333333333333 [um]
  pixelSize=0.0833333 um, width=85.3333 um, height=85.3333 um

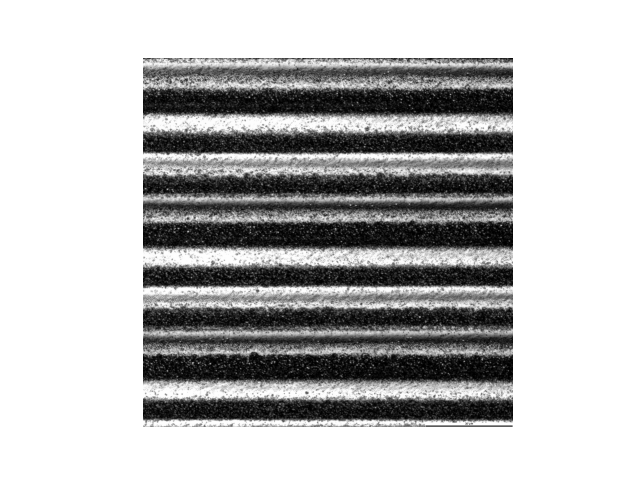

Display the first processed image in the generated documentation page.

first_image = Image.open(output_paths[0])
plt.imshow(first_image)
plt.axis("off")

(np.float64(-0.5), np.float64(1023.5), np.float64(1023.5), np.float64(-0.5))
